HYS Dual-Band 9.5/11.5dBi 100W Yagi 8 Element Beam Antenna

  •  HYS Dual-Band 9.5/11.5dBi 100W Yagi 8 Element Beam Antenna
  •  HYS Dual-Band 9.5/11.5dBi 100W Yagi 8 Element Beam Antenna
  •  HYS Dual-Band 9.5/11.5dBi 100W Yagi 8 Element Beam Antenna
  •  HYS Dual-Band 9.5/11.5dBi 100W Yagi 8 Element Beam Antenna
  •  HYS Dual-Band 9.5/11.5dBi 100W Yagi 8 Element Beam Antenna
  •  HYS Dual-Band 9.5/11.5dBi 100W Yagi 8 Element Beam Antenna
Model No.︰TC-YG08UV
Brand Name︰HYS
Country of Origin︰China
Unit Price︰-
Minimum Order︰1 pc
Share on:

 Total 19 Related Items
12345Next

Specifications︰ Frequency Range: 144/ 430 MHz

Impedance:50Ω

VSWR:<1.5

Polarization:Horizontal or Vertical

Horizontal 3dB Beam Width: 53°/ 45°

Vertical 3dB Beam Width: 48°/ 40°

Front To Back Ratio: >12 dB

Lighting Protection: Direct Ground

Maximum Power Input-watts: 100 W

Gain:9.5 dBi / 11.5 dBi

Connector: SL16 female(UHF FEMALE)

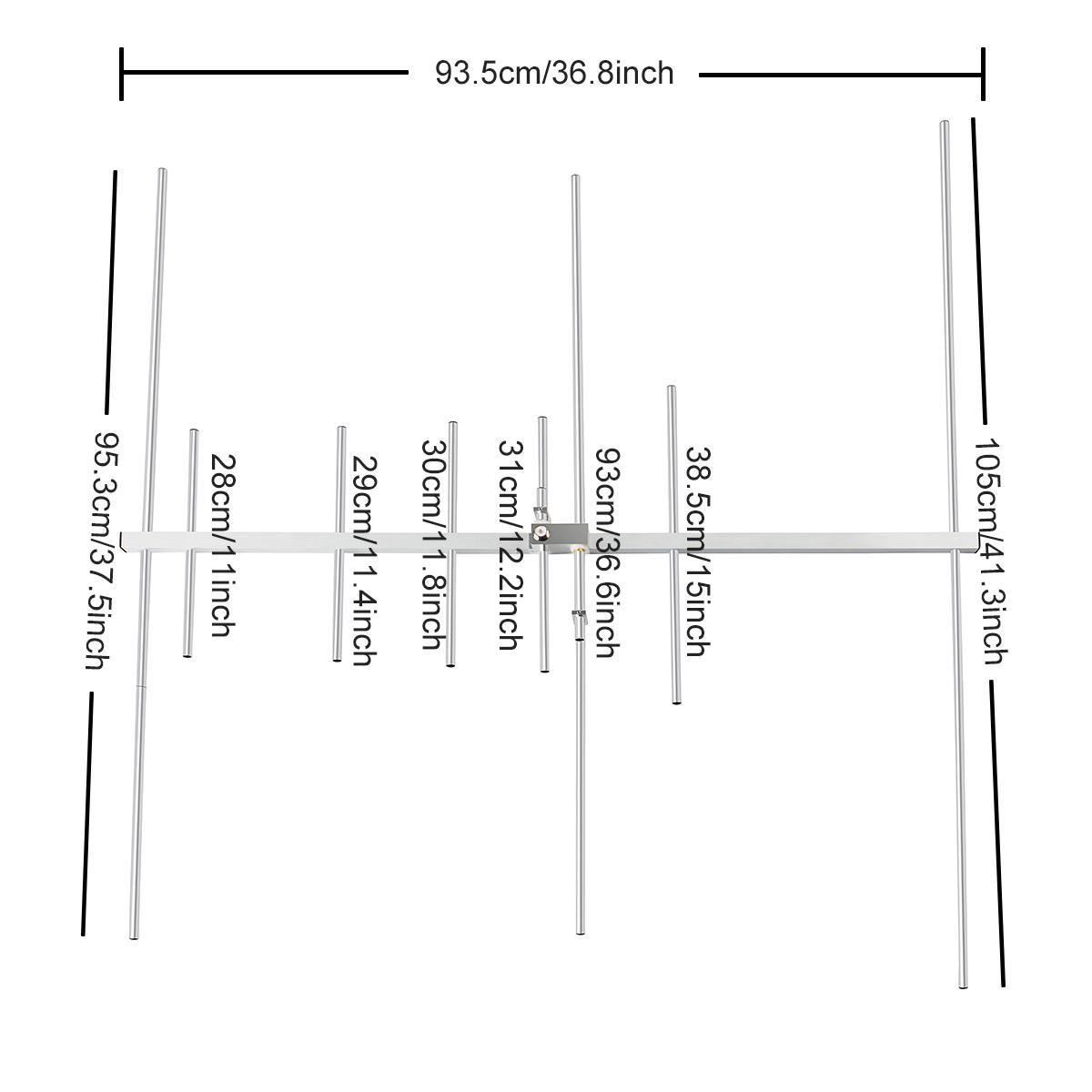

925×1045×60 mm

Mounting hardware:Ø30~Ø60 mm

Rated Wind Velocity:60 m/s
Advantages︰
Yagi antenna material: aluminium alloy.

Electroplating and polishing for element, oxidation resistance and corrosion resistance.

Made from long lasting, top grade electro-polished aluminium alloy.

3 Sections, 8 Elements(Install Problems).

Simple construction and Simplifies installation.

Comes with mount and screws, easy to carry and install, the body of the Yagi Antenna makes it highly resilient to outdoor use.

Yagi antenna will significantly increase the range of your device. VHF/UHF YAGI antenna working for 136-174Mhz&400-470Mhz mobile car radio/2-way radio, such as Kenwood Motorola, AnyTone, BaoFeng, Wouxun. Not Includes: coaxial cable and radio.

HYS Yagi Antenna Superior construction to withstand tough outdoor weather conditions.
Payment Details︰T/T paypal etc
Min Order︰1
Ship Date︰3-15working days
